Description

Range: Urban
Finish: Polished Copper

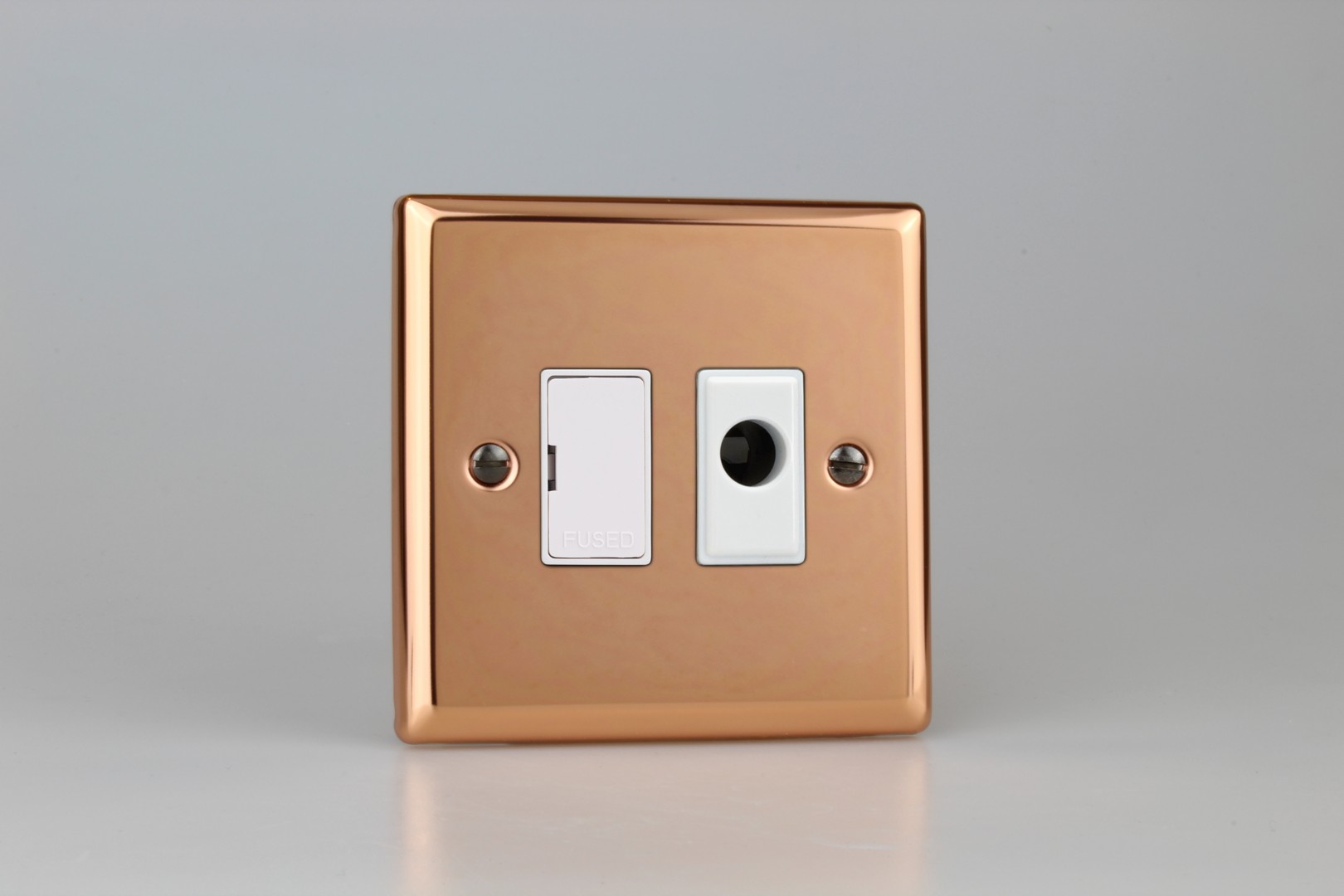

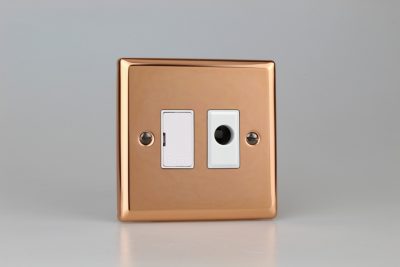

Product Category: Fused Spur
Insert/Knob Colour: White Inserts

Barcode: 5021575998863

Dimensions: 91x91x34mm
Faceplate Depth: 8mm
Net Weight: 166g
Gross Weight: 168g
Fixing Centres: 60.3mm
Depth from Mounting Face: 17.2mm
Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz
Maximum Load Rating: Refer to Fuse Value
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
