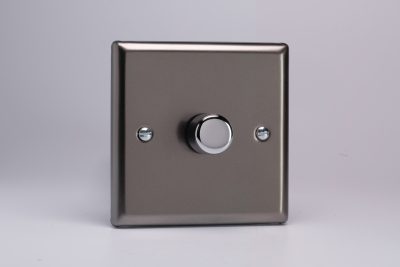

Varilight Classic Pewter V-Com 1-Gang 2-Way Push-On/Off Rotary LED Matrix Dimmer 1 x 20-400W (max 40 LEDs)

SKU WR1 + MKP400 x 1 (KRP401) Categories , , , ,
EAN: 5021575552409

£32.74 £32.74

Description

Varilight Matrix is a new system devised to help you easily create your bespoke dimmer. The dimmer pack (faceplate kit) comes with everything you need except the dimmer module, so all you need to get is your modules to create the dimmer you need making it easier, more ecological and economical for you to create bespoke dimmers.

Our V-Com series comprises of programmable intelligent dimmers which have a push-on/push-off switch action with rotary dimming. All V-Com dimmers offer smooth LED dimming technology to deliver the best possible dimming performance for a given load. V-Com dimmers are designed to control LED lighting loads requiring leading-edge (triac) control with options from 0W-100W (max. 10 LEDs), 15W-180W (max. 20 LEDs), 15W-220W (max. 26 LEDs), 20W-400W (max. 40 LEDs) and 40W-600W (max. 60 LEDs).

For loads requiring trailing-edge control always choose a V-Pro series dimmer. V-Pro dimmers are available with options from 0W-100W and 10W-300W.

There is a choice of driving modes to optimize the dimming performance of any given LED lighting load. V-Com dimmers feature our new DRIVE function to aid initial start-up for lamps that otherwise will not switch on at low brightness settings. This feature, alongside adjustable minimum and maximum brightness settings enable V-Com dimmers to provide the full range of brightness that a given LED lamp is capable of delivering. V-Com dimmers also have a soft-start feature and intelligent overload protection to improve the life span of both the LED lamps and the dimmer. With its patented intelligent LED dimming technology, V-Com is our best value range for LED dimming.

For more information on compatibility, please refer to our  dimmer selection guide.

* Users can set the minimum and maximum load level for the dimmer to optimise the dimming range of a particular lighting load.



Product Specifications

Range: Classic
Finish: Pewter
Product Category: V-Com Dimmer
Insert/Knob Colour: Chrome Knob

Barcode: 5021575552409

Dimensions: 91x91x50mm
Faceplate Depth: 8mm
Product Weight: 160g
Fixing Centres: 60.3mm
Recommended Back Box Depth: 25mm

Operating Voltage: 220/250V AC
Maximum Load Rating: LED; 400W (Halogen; 400W)
Maximum Current Rating: 1.7A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
