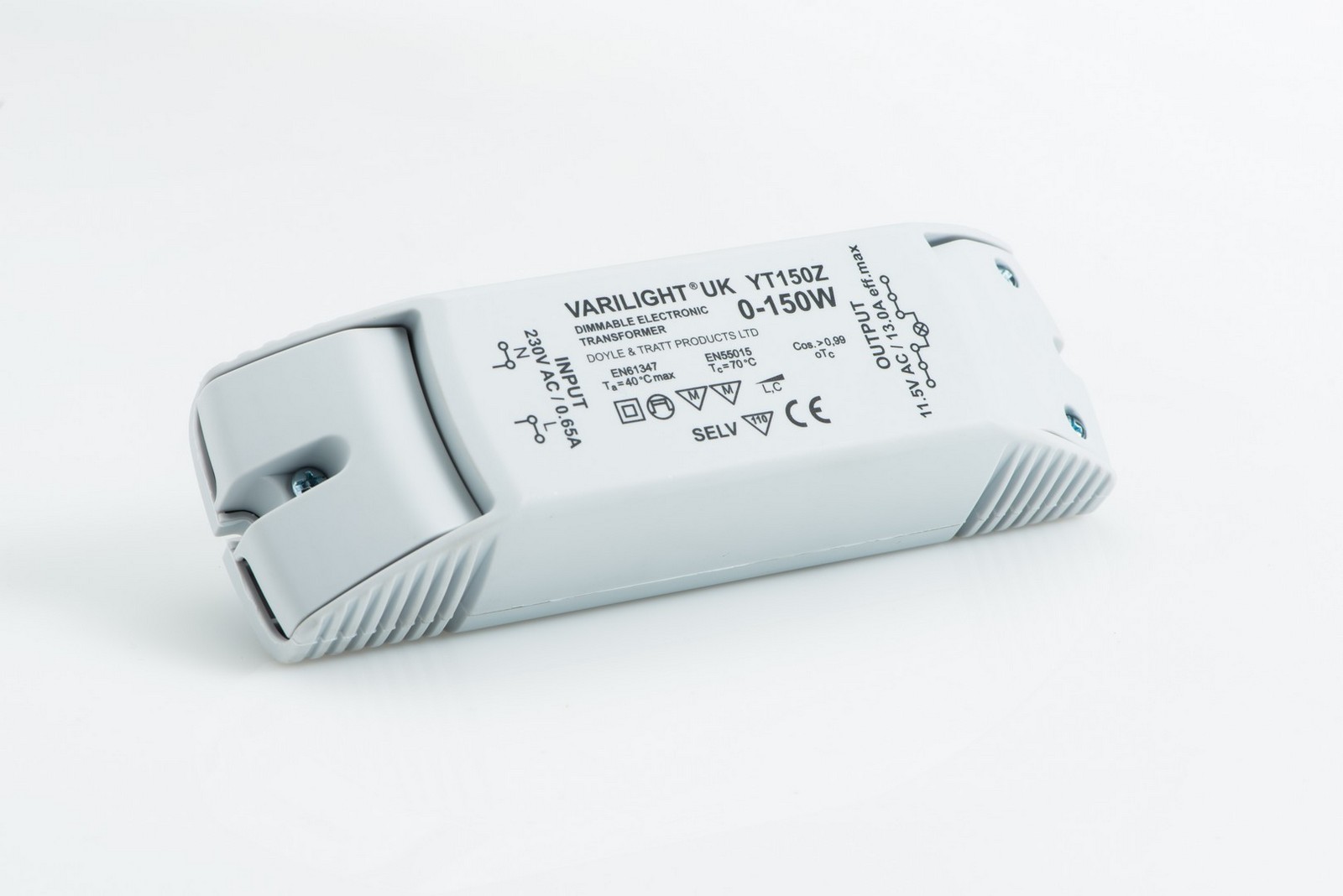

0-150VA Dimmable Low Voltage Lighting Transformer (with Terminals)

Description

Soft start gently brings lights up to full brightness when you switch on and extends lamp life. Auto-resetting overload protection and over-temperature. 2 x pairs of input terminals and 3 x pairs of output terminals. Short circuit protection – IP20. No minimum ratin.

Product Category: Electronic Transformer

Barcode: 5021575960051

Dimensions: 167×52.5×38.5mm

Net Weight: 210g

Gross Weight: 212g

Operating Voltage: 230v 50Hz

Maximum Load Rating: 150W

Maximum Current Rating: 230V AC: 0.65A / 11.5V AC 13.0A

Terminal (Live) Diameter: 2.6mm; Capacity: 2 x 1.5mm²

Terminal (Neutral) Diameter: 2.6mm; Capacity: 2 x 1.5mm²
